ISO Laboratory Tube Furnace Mini Nitrogen Split Tube Furnace 1200C

Name: ISO Laboratory Tube Furnace Mini Nitrogen Split Tube Furnace 1200C
Brand: Programtherm
Price: 1 USD

Brand Name : Programtherm

Model Number : PT D60/400/12

Certification : CE

Payment Terms : T/T, L/C

Delivery Time : 7 working days

Usage : Heat treatment, biomass pyrolysis

Tmax temperature : 1200 degree C

Working temperature : 1100 degree C

Heating length : 400mm

Tube diameter : OD60mm ID52mm

Tube material : Quartz

Chamber material : 1500# Alumina fiber board

Heating elements : HRE embedded type

Temp Controller : Digital auto-tune PID 32 segments

Thermocouple : N

Warranty : Two years

After-sales service : free spareparts including air freight

Contact Now

Product Overview for Quartz Tube Furnace

1200C series tube furnace features splitable tube furnace with quartz tube and vacuum sealing flanges / valves, it is widely used in vacuum sintering, atmosphere protection sintering, vacuum film coating, CVD experiments and physical components testing for rare earth preparation, electronic lighting, crystal annealing, biological ceramics, electronic ceramics, special alloy, magnetic material, precision casting and metal heat treatment.

Main Features

Tmax 1200 °C
Electric heated, Single zone, Splitable, vacuum tube furnace
Multiple atmosphere processes in a single cycle are available
Max Vacuum level achieve 10E-5 torr worked with molecular pump
Fiber-insulated chamber with all sides embeded heating wires ensure uniform temperature
Shimaden PID temperature controller with programmable 32 segments
SS304 vacuum sealing flanges with valves and pressure meter included
Dual flanges support provides better sealing and longer tube life
Split tube furnace chamber for fast and easy tube access
Long life type N thermocouple
CE certified, standard

ISO Laboratory Tube Furnace Mini Nitrogen Split Tube Furnace 1200C

Ramping, Dwelling, Cooling Curves for 1200 Series Laboratory Furnaces

Safety Measures

Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
Power failure protection resumes furnace operation right after the point of failure when power is reestablished
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

ISO Laboratory Tube Furnace Mini Nitrogen Split Tube Furnace 1200C

Front View for Quartz Split Tube Furnace 1200 degree C

ISO Laboratory Tube Furnace Mini Nitrogen Split Tube Furnace 1200C

Details for Quartz Split Tube Furnace 1200 degree C

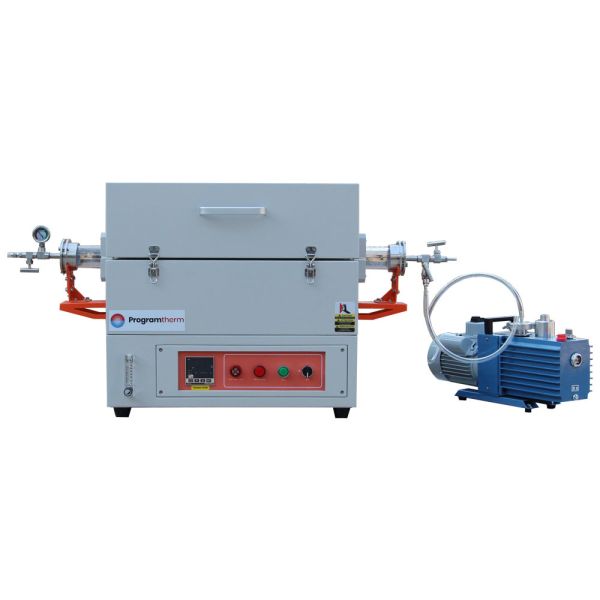

Quartz Tube Furnace Connect with Rotary Vacuum Pump Unit

Technical Specifications

Model No.	PT D60/400/12
Heating zone	Heating length 400mm/18" Uniform temp zone: 150mm
Power supply	2.6KW AC208-240V, 50/60Hz, single phase
Working temperature	Tmax 1200°C (2192°F) Continuously 1100°C (2012°F) Temperature uniformity +/- 5C
Temperature controller	30 programmable segments for heating, cooling and dwelling. Built-in PID Auto-Tune function with overheating & broken thermocouple protection. Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy.
Heating rate	≤25°C /min
Thermocouple	N type
Chamber lining	Mitsubishi Raw Material high alumina 1500# fiber board
Furnace tube	Fused quartz OD60mm, length 800mm equips vacuum flanges with gas inlet and outlet valve Vacuum level: Max 10E -5 torr with molecular pump
Vacuum flanges	Pair of hinged type stainless steel flanges with needle valves Water cold hinged type flange is available upon request at extra cost
Vaccum level	10^-2 torr by the mechanical pump 10^-5 Torr by a molecular pump
Atmosphere gas	Argon, Nitrogen etc
Heating element	HRE resistance coil wire
Shipping info	Weight: 78kgs W910xL560xH710mm
Compliance	CE, ISO
Warranty	2 years limited warranty with lifetime technical support

Application Notes

Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
Laboratory tube furnaces with quartz tube are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison

Item name	PT D40/400/12	PT D80/400/12	PT D100/400/12
Heating length	400 mm	400 mm	400 mm
Tube size	OD40xL800mm	OD80xL800mm	OD100xL800mm
Power	220V/1.8KW	220V/2.8KW	220V/3KW
Furnace dimensions (LxWxH)	830x450x520mm	850x470x540mm	870x490x560mm
Weight	58 KGS	75 KGS	80 KGS
